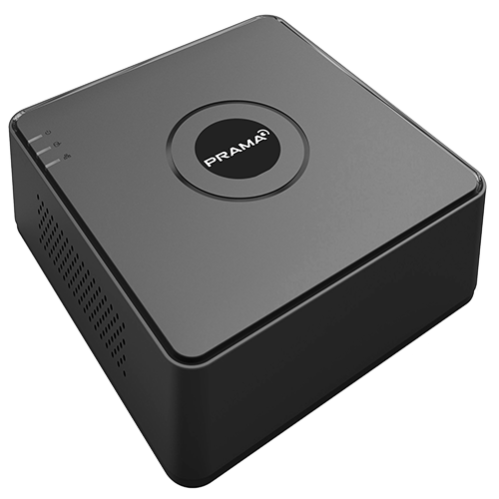

PRAMA 4-ch 1080p DVR K1

Video/Audio input\\\\r\\\\nVideo compression\\\\r\\\\nH.264+/H.264\\\\r\\\\nAnalog video input\\\\r\\\\n4-ch\\\\r\\\\nBNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection\\\\r\\\\nHD-TVI input\\\\r\\\\n1080p25, 1080p30, 720p25, 720p30\\\\r\\\\nAHD input\\\\r\\\\n1080p25, 1080p30, 720p25, 720p30\\\\r

₹ 2,200.00 ^₹3,500

( 0 Reviews )

About This Item

Video/Audio output
HDMI/VGA output1-ch, 1920 × 1080/60Hz,1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Encoding resolutionWhen 1080p lite mode not enabled: 720p/WD1/4CIF/VGA/CIF When 1080p lite mode enabled: 1080p lite/HD 720p lite/WD1/4CIF/VGA/CIF
Frame rate“Main stream: When 1080p lite mode enabled:
1080p lite/HD 720p lite/WD1/4CIF/VGA@12fps; CIF@25fps (P)/30fps (N)
When 1080p lite mode not enabled:
For 720p stream access:
720p/WD1/4CIF/VGA@12fps; CIF@25fps (P)/30fps (N)
For SD stream access:
WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
Sub-stream:
CIF/QVGA/QCIF@25fps (P)/30fps (N)
”
Video bit rate32 Kbps to 4 Mbps
Audio output1-ch, RCA (Linear, 1 KΩ)
Audio bit rate64 Kbps
Dual streamSupport
Stream typeVideo, Video & Audio
Synchronous playback4-ch
Network management
Remote connections32
Network protocolsTCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
Hard disk
SATA1 SATA interface
CapacityUp to 6 TB capacity for each disk
External interface
Network interface1, RJ45 10M/100M self-adaptive Ethernet interface
USB interfaceRear panel: 2 × USB 2.0
General
Power supply12 VDC
Consumption (without HDD)≤ 8 W
Working temperature-10 ºC to +55 ºC (14 ºF to 131 ºF)
Working humidity10% to 90%
Dimensions(W × D × H)200 × 200 × 45 mm (7.9 × 7.9 × 1.8 inch)
Weight(without HDD)
Video/Audio input
Video compressionH.264+/H.264
Analog video input4-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HD-TVI input1080p25, 1080p30, 720p25, 720p30
AHD input1080p25, 1080p30, 720p25, 720p30
HDCVI input1080p25, 1080p30, 720p25, 720p30
CVBS inputSupport
IP video input1-ch(up to 5-ch)
Up to 1.3MP resolution
Audio compressionG.711u
Audio input/Two-way audio input1-ch, RCA (2.0 Vp-p, 1 KΩ)

Description Reviews Sold By

Video/Audio output
HDMI/VGA output1-ch, 1920 × 1080/60Hz,1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Encoding resolutionWhen 1080p lite mode not enabled: 720p/WD1/4CIF/VGA/CIF When 1080p lite mode enabled: 1080p lite/HD 720p lite/WD1/4CIF/VGA/CIF
Frame rate“Main stream: When 1080p lite mode enabled:
1080p lite/HD 720p lite/WD1/4CIF/VGA@12fps; CIF@25fps (P)/30fps (N)
When 1080p lite mode not enabled:
For 720p stream access:
720p/WD1/4CIF/VGA@12fps; CIF@25fps (P)/30fps (N)
For SD stream access:
WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
Sub-stream:
CIF/QVGA/QCIF@25fps (P)/30fps (N)
”
Video bit rate32 Kbps to 4 Mbps
Audio output1-ch, RCA (Linear, 1 KΩ)
Audio bit rate64 Kbps
Dual streamSupport
Stream typeVideo, Video & Audio
Synchronous playback4-ch
Network management
Remote connections32
Network protocolsTCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
Hard disk
SATA1 SATA interface
CapacityUp to 6 TB capacity for each disk
External interface
Network interface1, RJ45 10M/100M self-adaptive Ethernet interface
USB interfaceRear panel: 2 × USB 2.0
General
Power supply12 VDC
Consumption (without HDD)≤ 8 W
Working temperature-10 ºC to +55 ºC (14 ºF to 131 ºF)
Working humidity10% to 90%
Dimensions(W × D × H)200 × 200 × 45 mm (7.9 × 7.9 × 1.8 inch)
Weight(without HDD)
Video/Audio input
Video compressionH.264+/H.264
Analog video input4-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HD-TVI input1080p25, 1080p30, 720p25, 720p30
AHD input1080p25, 1080p30, 720p25, 720p30
HDCVI input1080p25, 1080p30, 720p25, 720p30
CVBS inputSupport
IP video input1-ch(up to 5-ch)
Up to 1.3MP resolution
Audio compressionG.711u
Audio input/Two-way audio input1-ch, RCA (2.0 Vp-p, 1 KΩ)
